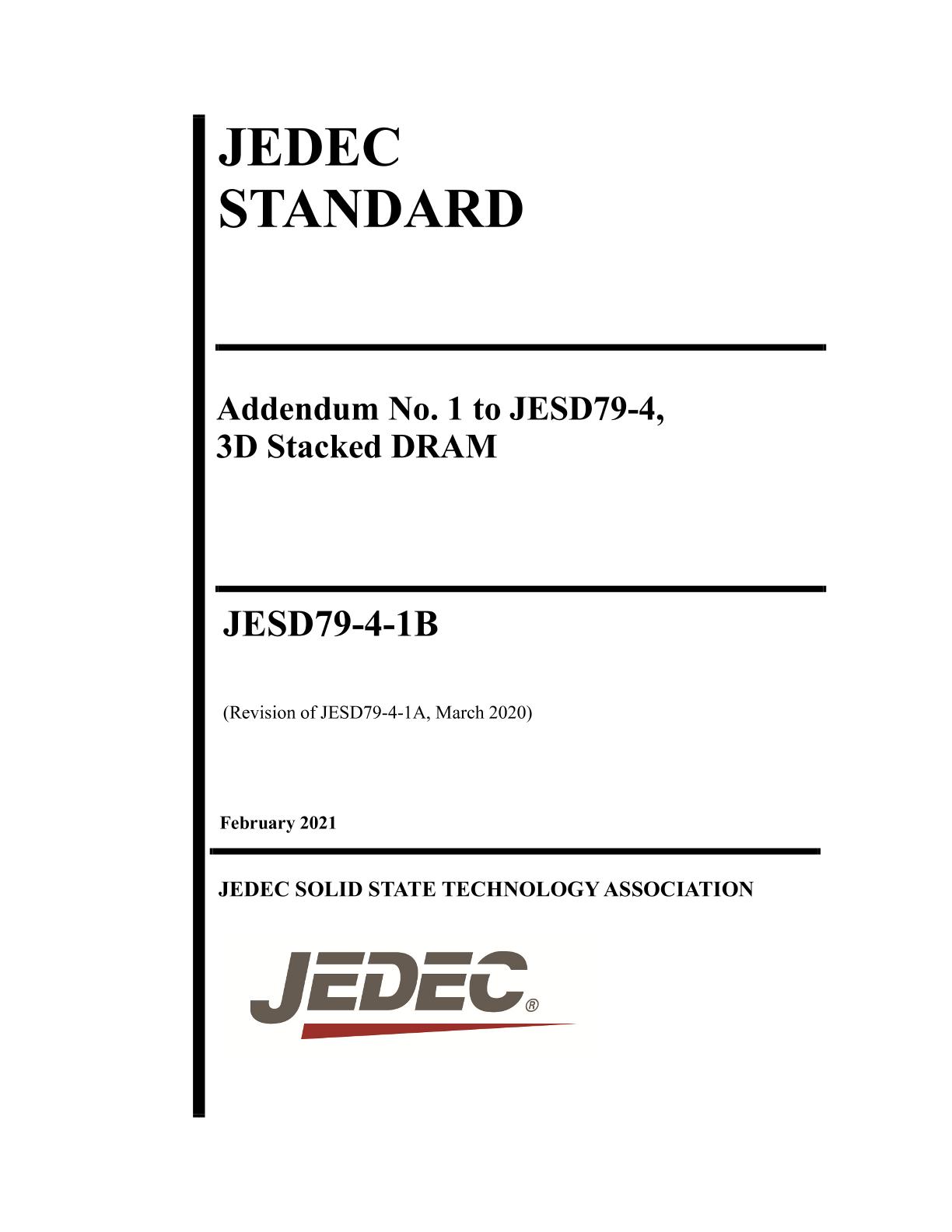

JEDEC JESD79-4-1B

Addendum No. 1 to JESD79-4, 3D Stacked Dram

JEDEC Solid State Technology Association, 02/01/2021

Publisher: JEDEC

File Format: PDF

$53.00$106.00


Published:01/02/2021

Pages:70

File Size:1 file , 2.4 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

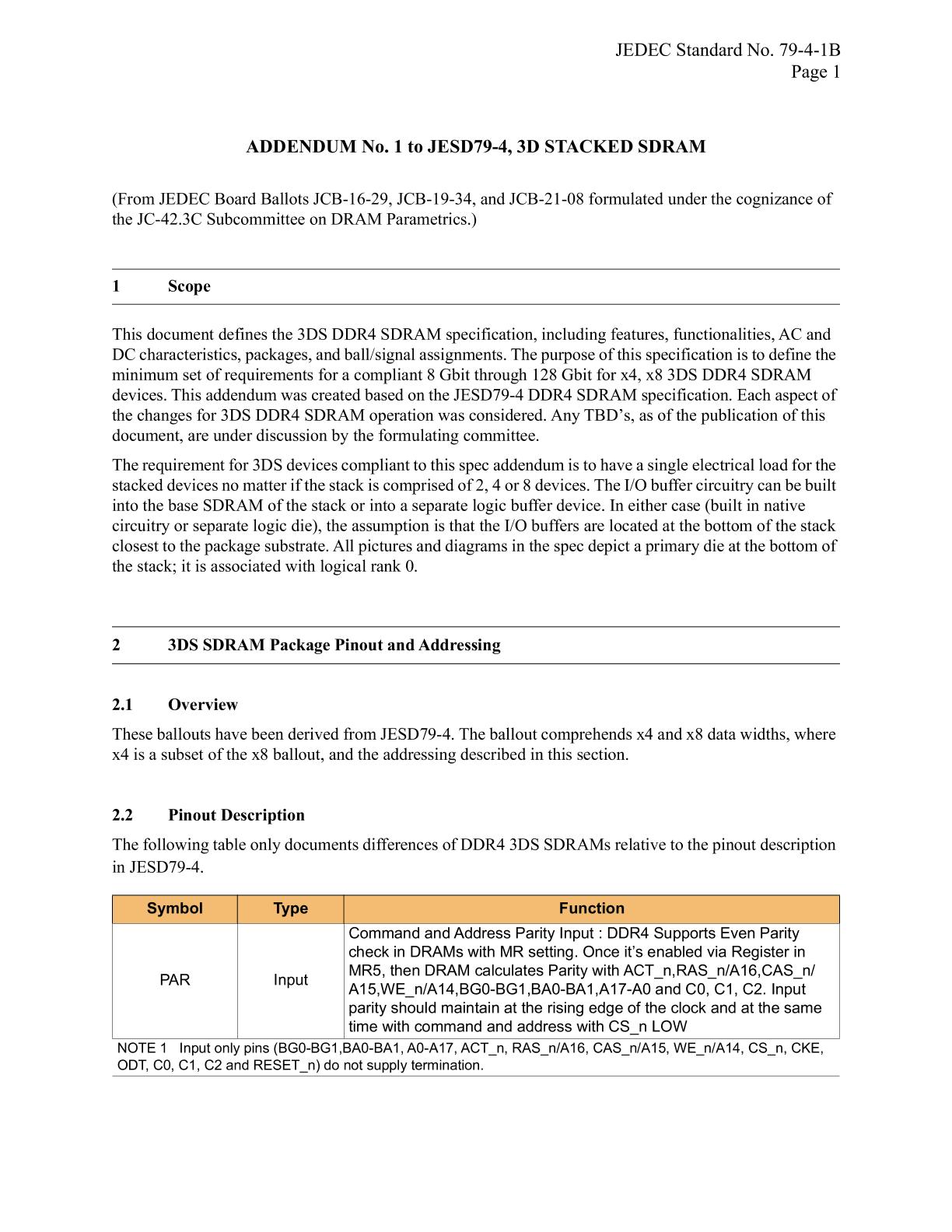

This document defines the 3DS DDR4 SDRAM specification, including features, functionalities, AC and DC characteristics, packages, and ball/signal assignments. The purpose of this specification is to define the minimum set of requirements for a compliant 8 Gbit through 128 Gbit for x4, x8 3DS DDR4 SDRAM devices. This addendum was created based on the JESD79-4 DDR4 SDRAM specification. Each aspect of the changes for 3DS DDR4 SDRAM operation was considered. Item 1727.58G
