PDF Preview

JEDEC JESD8-30A

POD125 - 1.25 V Pseudo Open Drain I/O

JEDEC Solid State Technology Association, 06/01/2019

Publisher: JEDEC

File Format: PDF

$30.00$60.00


Published:01/06/2019

Pages:20

File Size:1 file , 350 KB

Note:This product is unavailable in Russia, Ukraine, Belarus

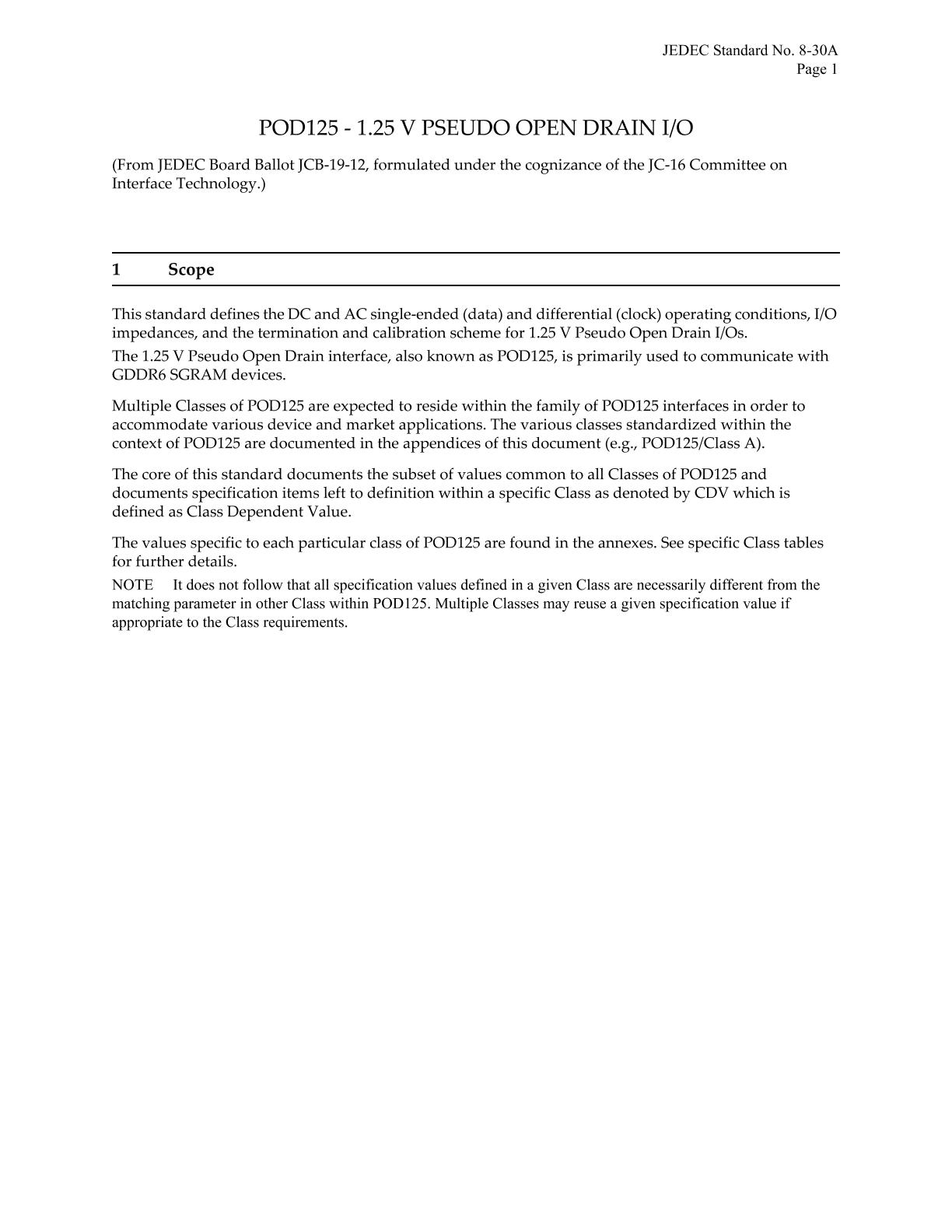

This standard defines the DC and AC single-ended (data) and differential (clock) operating conditions, I/O impedances, and the termination and calibration scheme for 1.25 V Pseudo Open Drain I/Os. The 1.25 V Pseudo Open Drain interface, also known as POD125, is primarily used to communicate with GDDR6 SGRAM devices.
