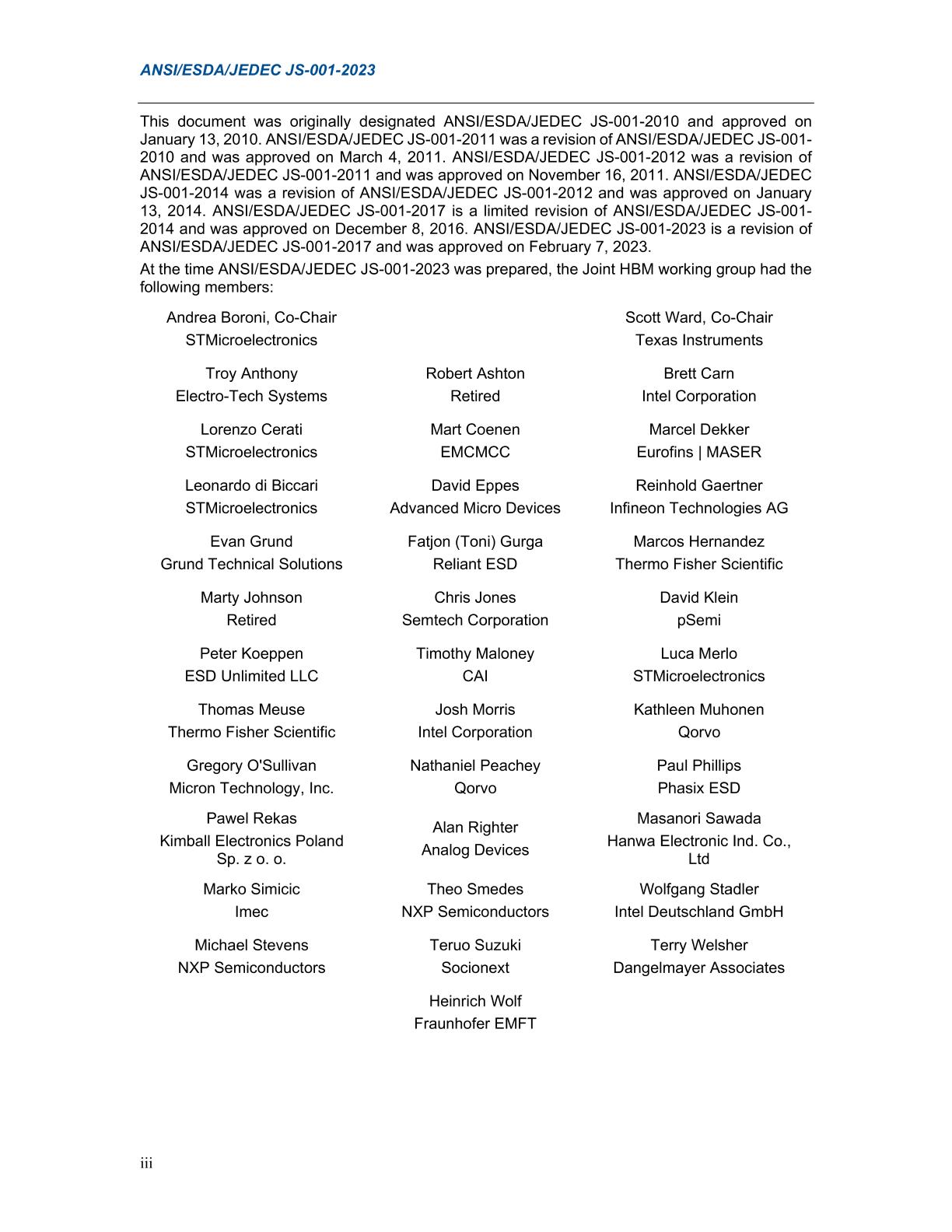

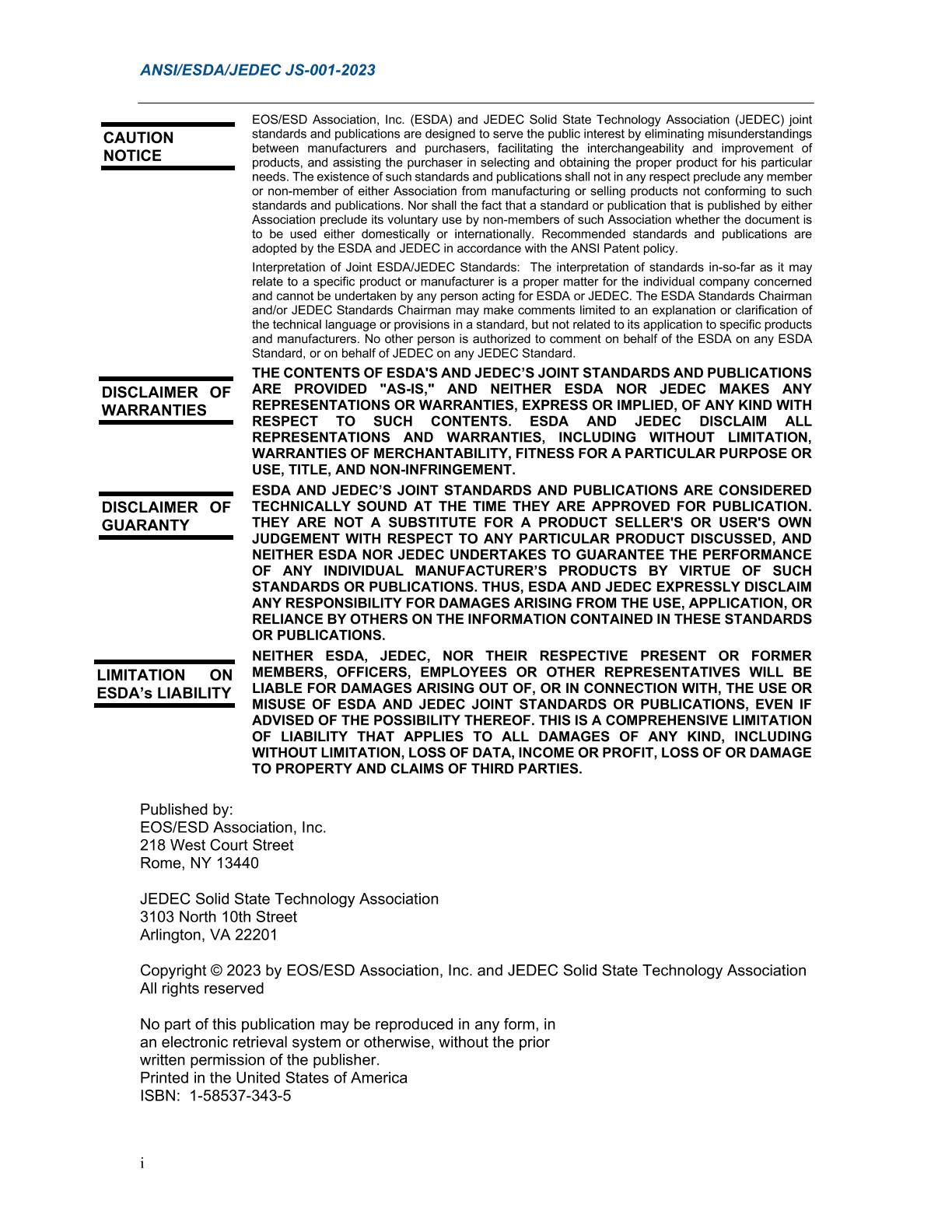

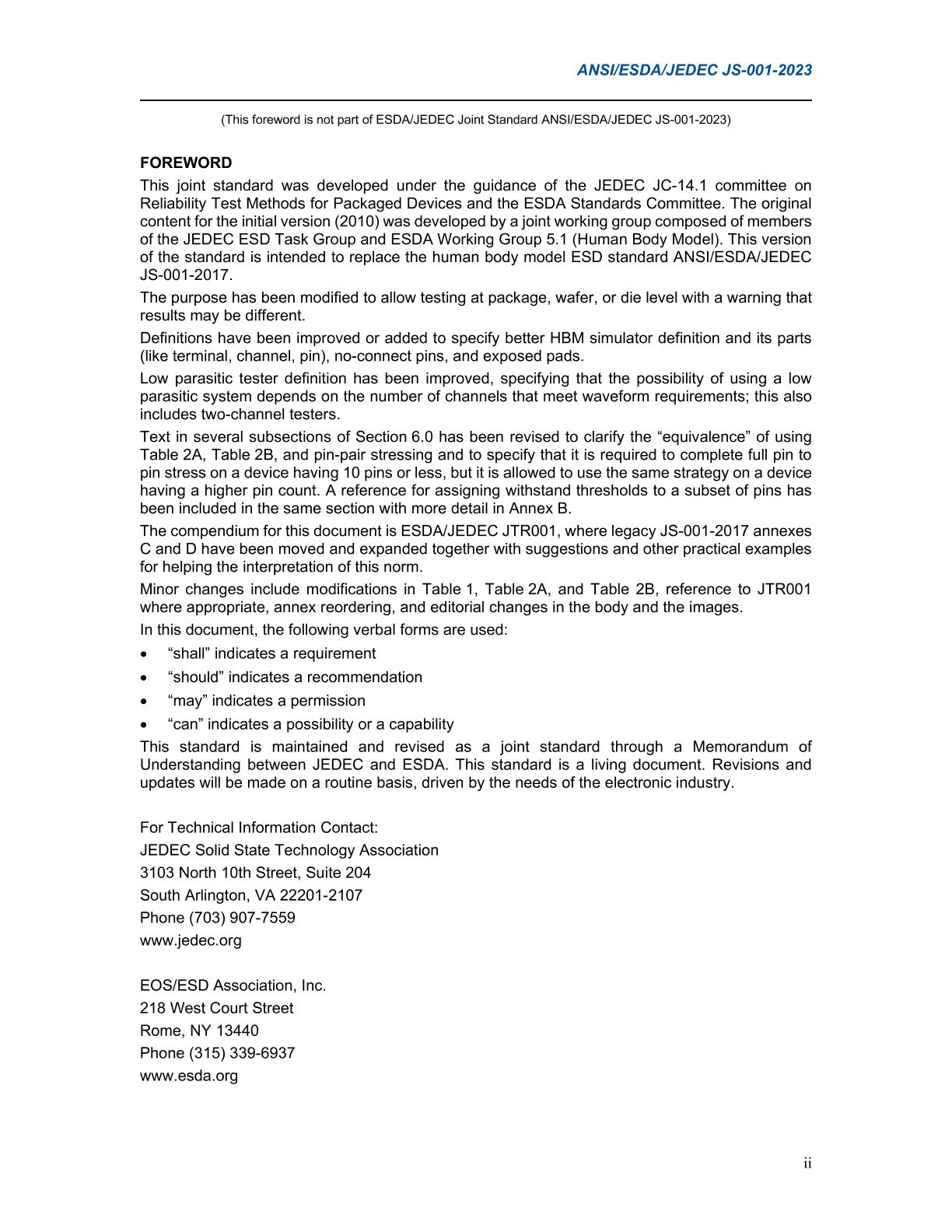

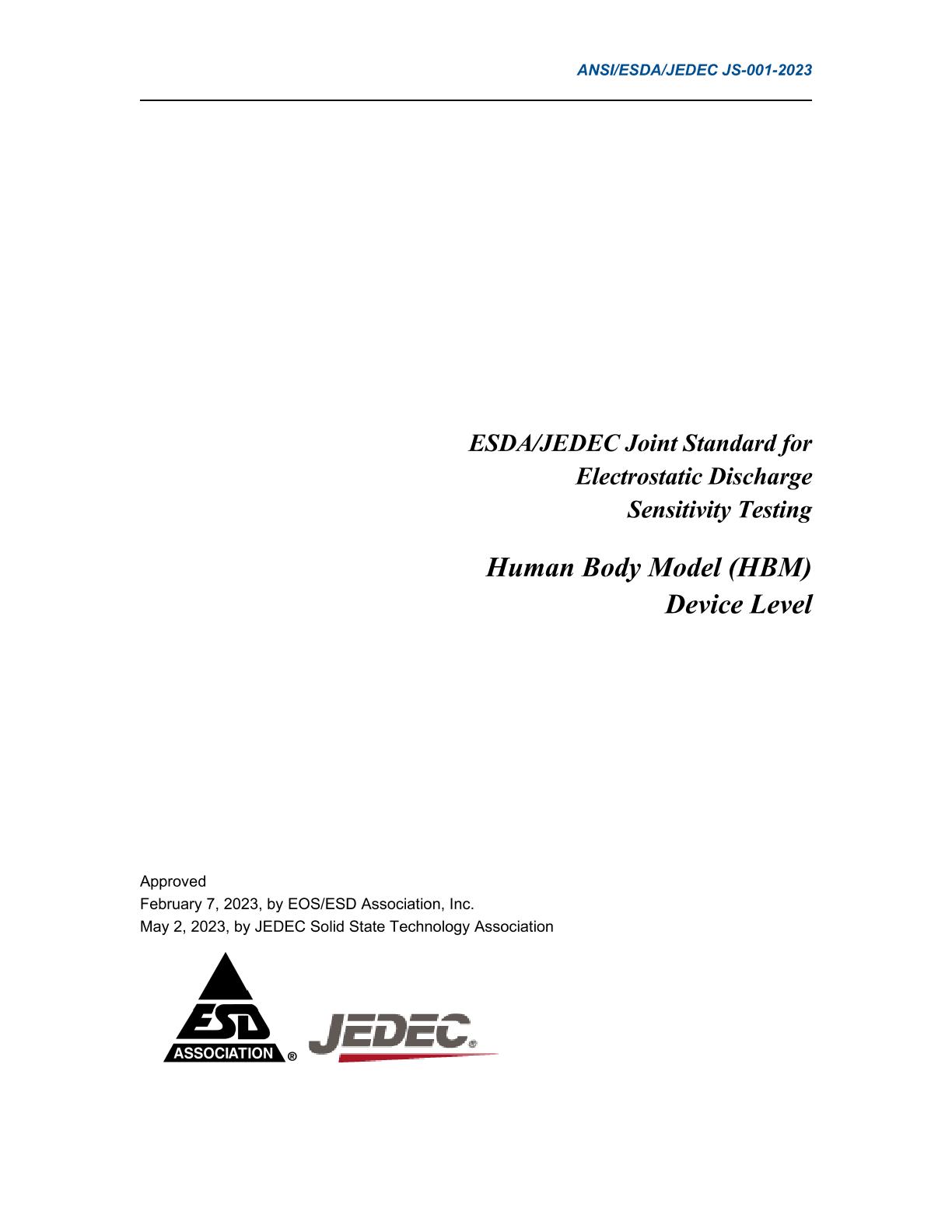

PDF Preview
JEDEC Solid State Technology Association, 05/30/2023
Publisher: JEDEC
File Format: PDF
$101.00$202.34
Published:30/05/2023
Pages:56
File Size:1 file , 1.4 MB
Note:This product is unavailable in Russia, Belarus
This standard establishes the procedure for testing, evaluating, and classifying components and microcircuits according to their susceptibility (sensitivity) to damage or degradation by exposure to a defined human body model (HBM) electrostatic discharge (ESD). The purpose (objective) of this standard is to establish a test method that will replicate HBM failures and provide reliable, repeatable HBM ESD test results from tester to tester, regardless of component type. Repeatable data will allow accurate classifications and comparisons of HBM ESD sensitivity levels. NOTE Data previously generated with testers meeting all waveform criteria of ANSI/ESD STM5.1-2007 or JESD22A-114F shall be considered valid test data.
