PIP ELSPF01

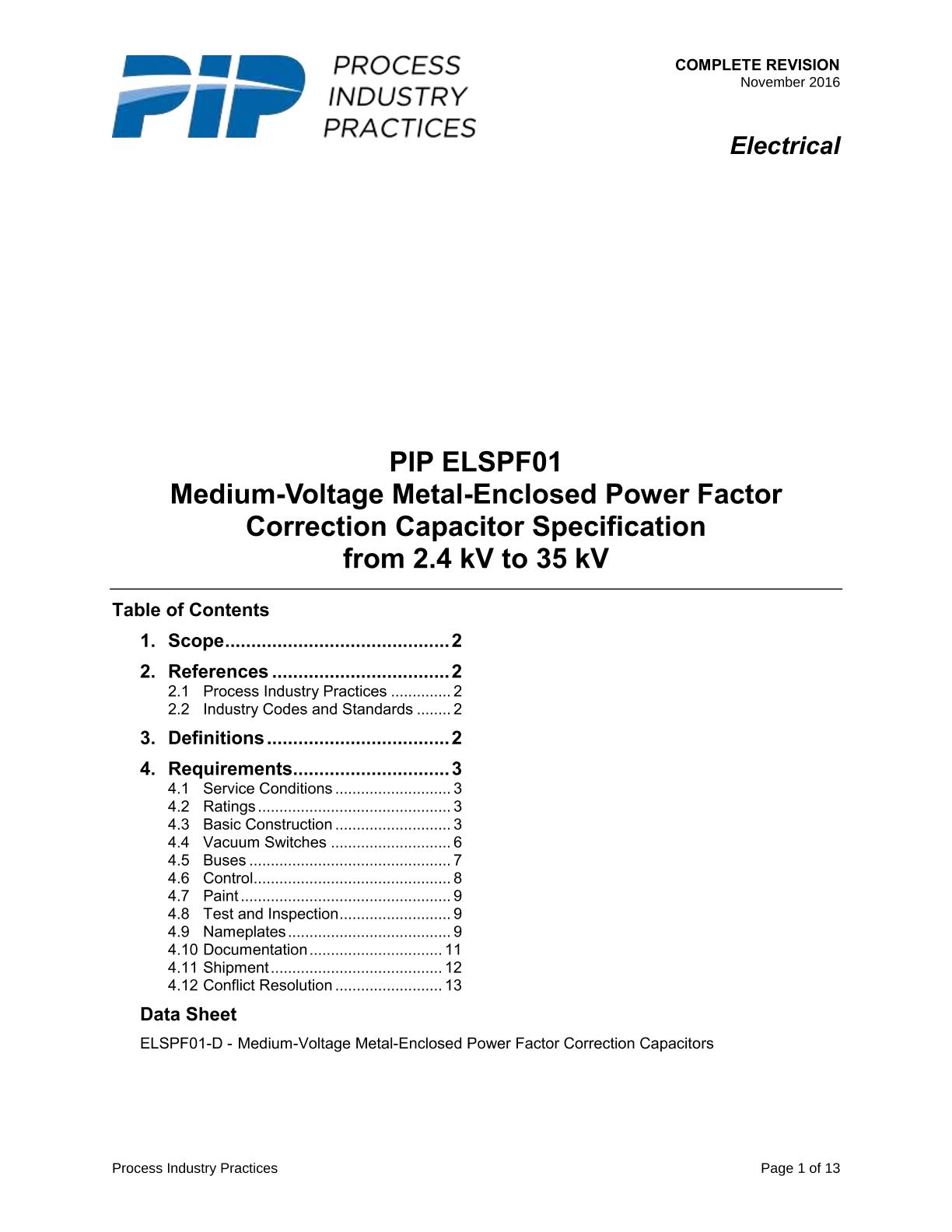

Medium-Voltage Metal-Enclosed Power Factor Correction Capacitor Specification from 2.4 kV to 35 kV

Process Industry Practices, 09/01/2016

Publisher: PIP

File Format: PDF

$75.00$150.00

Description

Published:01/09/2016

Pages:15

File Size:2 files , 530 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

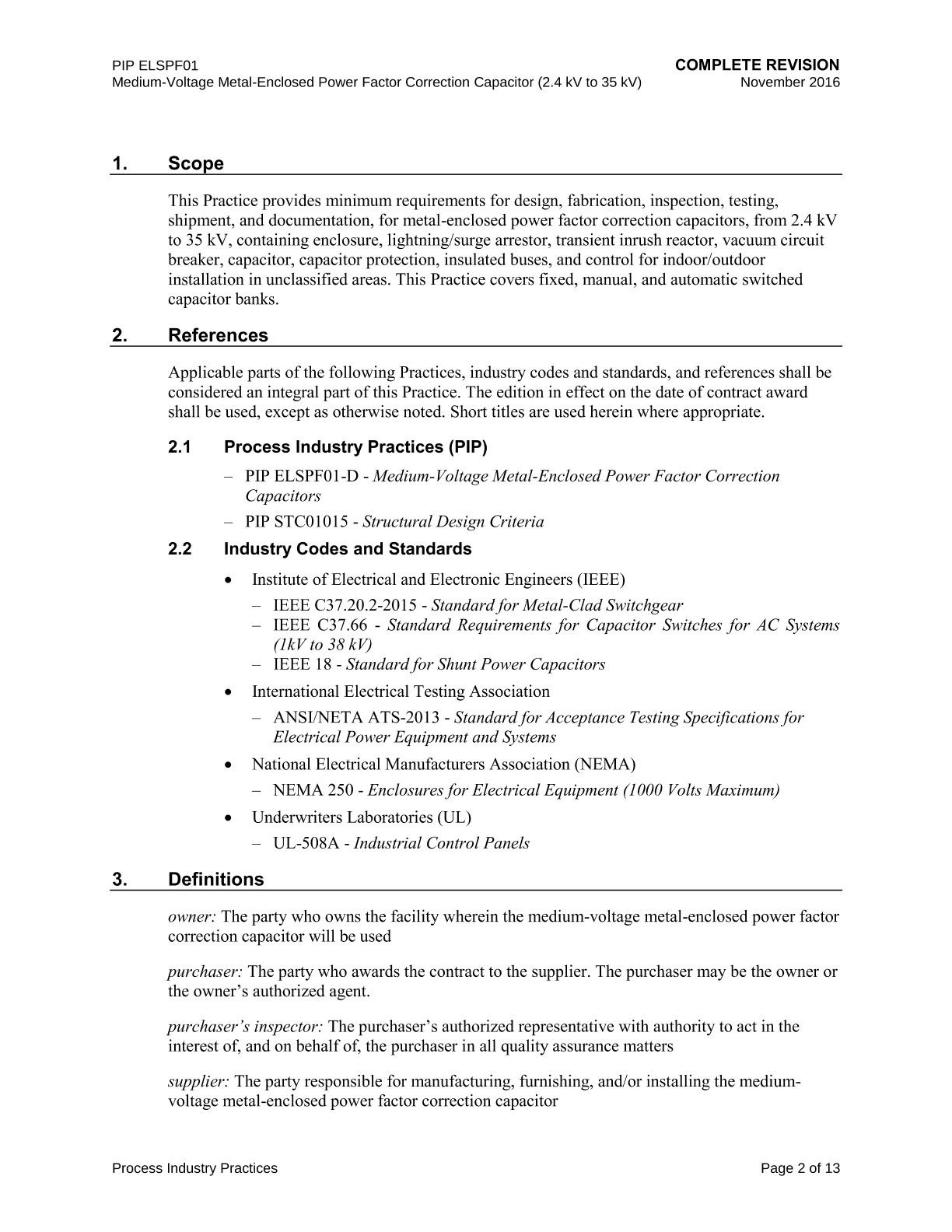

This Practice provides minimum requirements for design, fabrication, inspection, testing, shipment, and documentation, for metal-enclosed power factor correction capacitors, from 2.4 kV to 35 kV, containing enclosure, lightning/surge arrestor, transient inrush reactor, vacuum circuit breaker, capacitor, capacitor protection, insulated buses, and control for indoor/outdoor installation in unclassified areas. This Practice covers fixed, manual, and automatic switched capacitor banks.
