PDF Preview

PIP PHCM0001

Process Piping Line Class Designator System [Technical Revision]

Process Industry Practices, 04/01/2017

Publisher: PIP

File Format: PDF

$50.00$100.00


Published:01/04/2017

Pages:22

File Size:1 file , 150 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

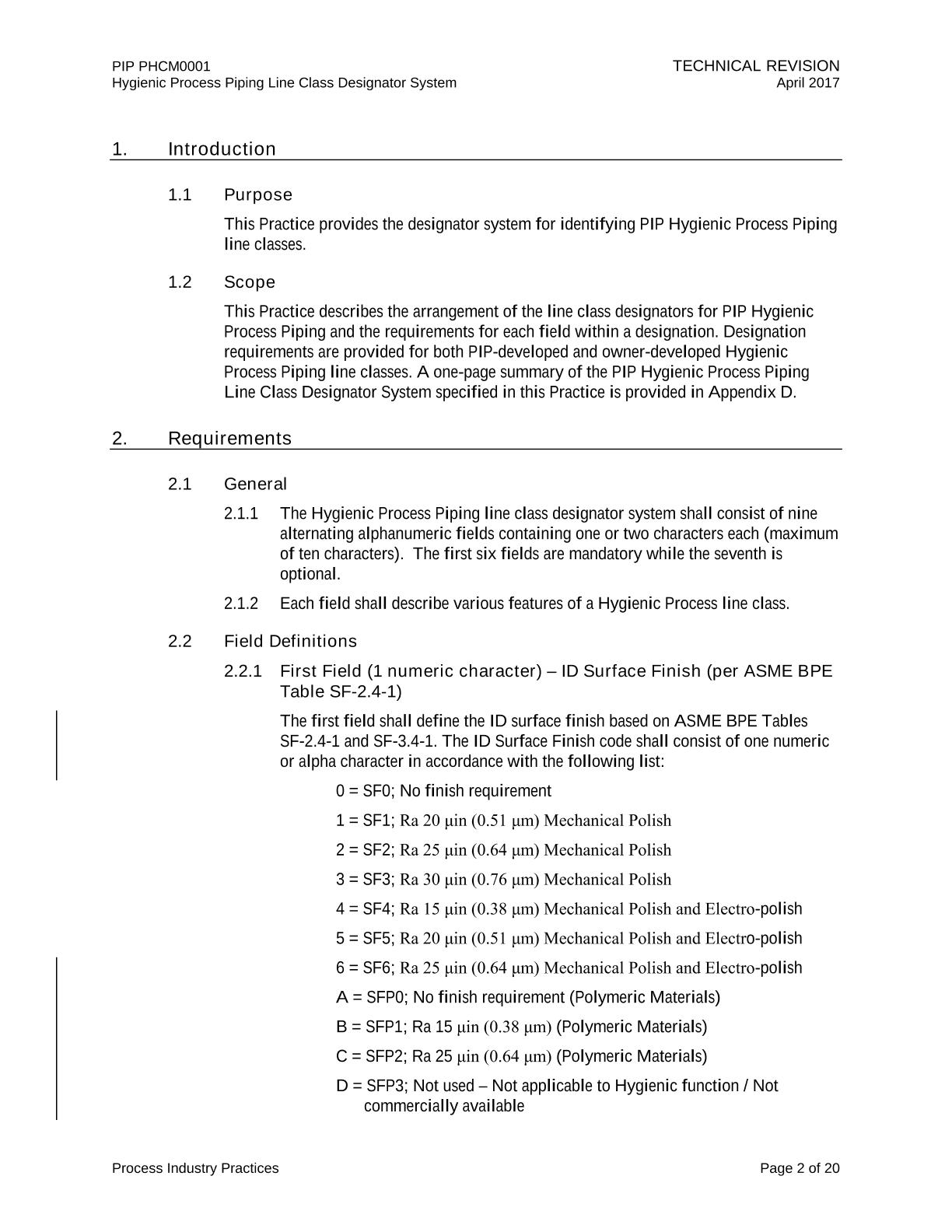

This Practice describes the arrangement of the line class designators for PIP Hygienic Process Piping and the requirements for each field within a designation. Designation requirements are provided for both PIP-developed and owner-developed Hygienic Process Piping line classes. A one-page summary of the PIP Hygienic Process Piping Line Class Designator System specified in this Practice is provided in Appendix D.
