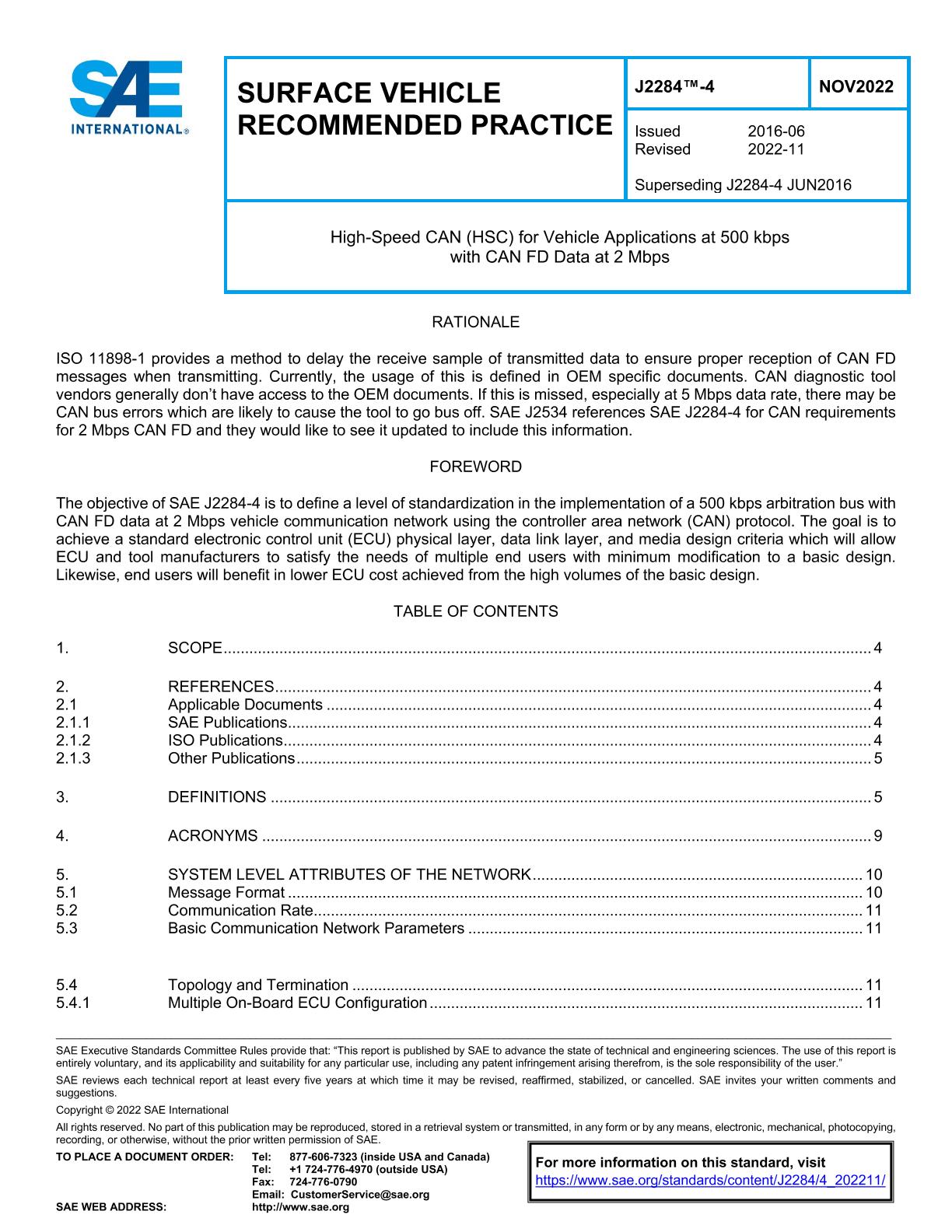

SAE J2284/4_202211

High-Speed CAN (HSC) for Vehicle Applications at 500 kbps with CAN FD Data at 2 Mbps

SAE International, 11/02/2022

Publisher: SAE

File Format: PDF

$62.00$125.00

Description

Published:02/11/2022

Pages:30

File Size:1 file , 460 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

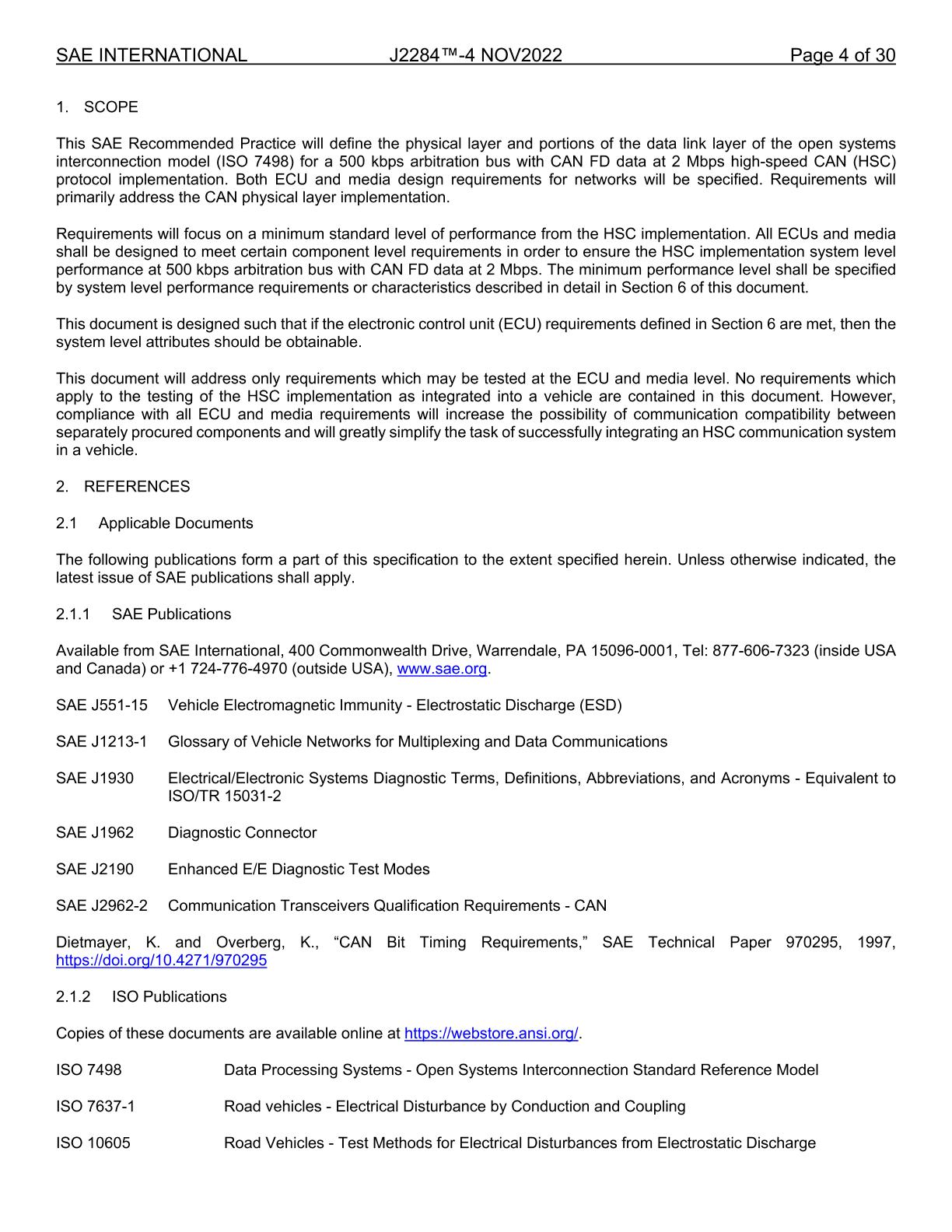

This SAE Recommended Practice will define the physical layer and portions of the data link layer of the open systems interconnection model (ISO 7498) for a 500 kbps arbitration bus with CAN FD data at 2 Mbps high-speed CAN (HSC) protocol implementation. Both ECU and media design requirements for networks will be specified. Requirements will primarily address the CAN physical layer implementation.
