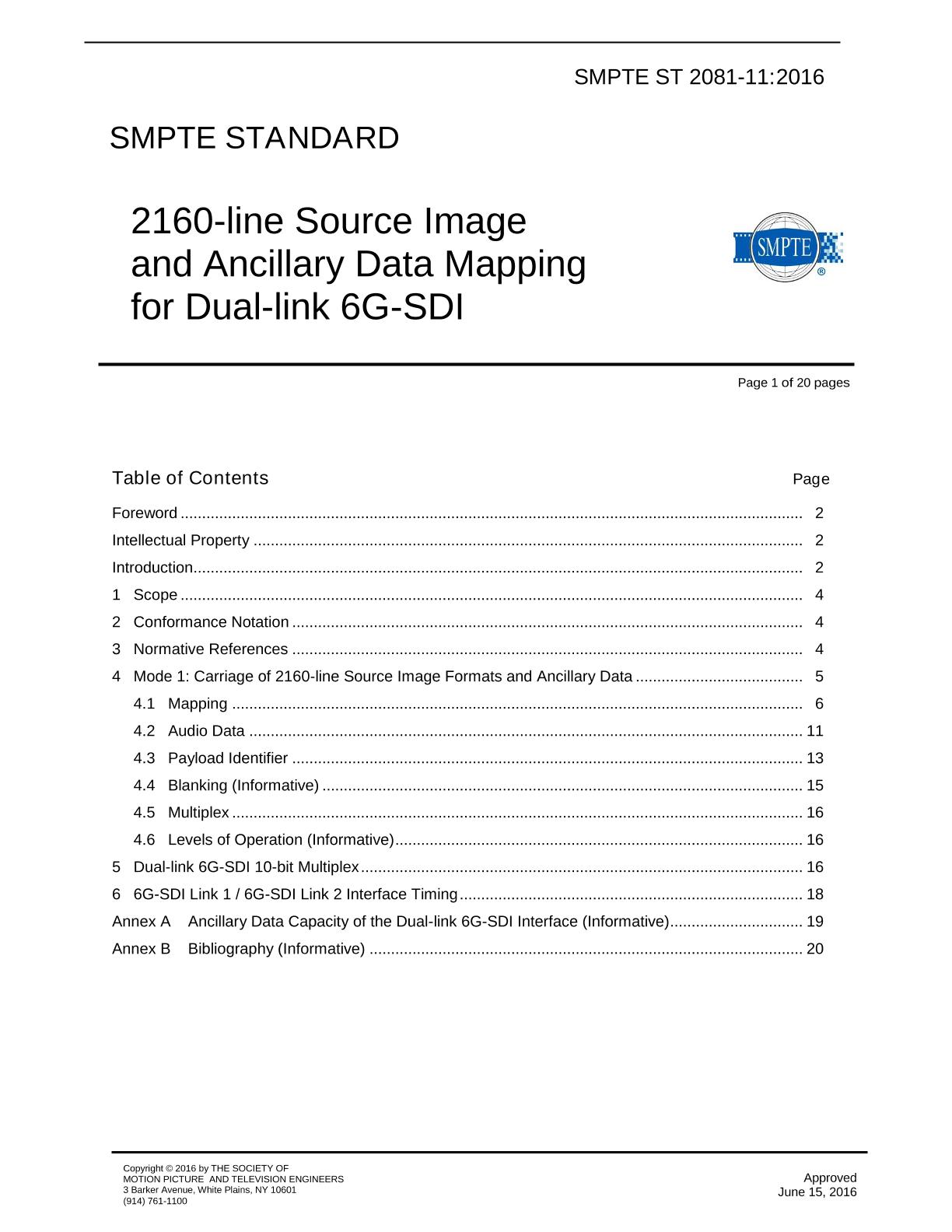

SMPTE ST 2081-11:2016

2160-line Source Image and Ancillary Data Mapping for Dual-link 6G-SDI

Society of Motion Picture and Television Engineers, 06/15/2016

Publisher: SMPTE

File Format: PDF

$60.00$120.00

Description

Published:15/06/2016

Pages:20

File Size:1 file , 560 KB

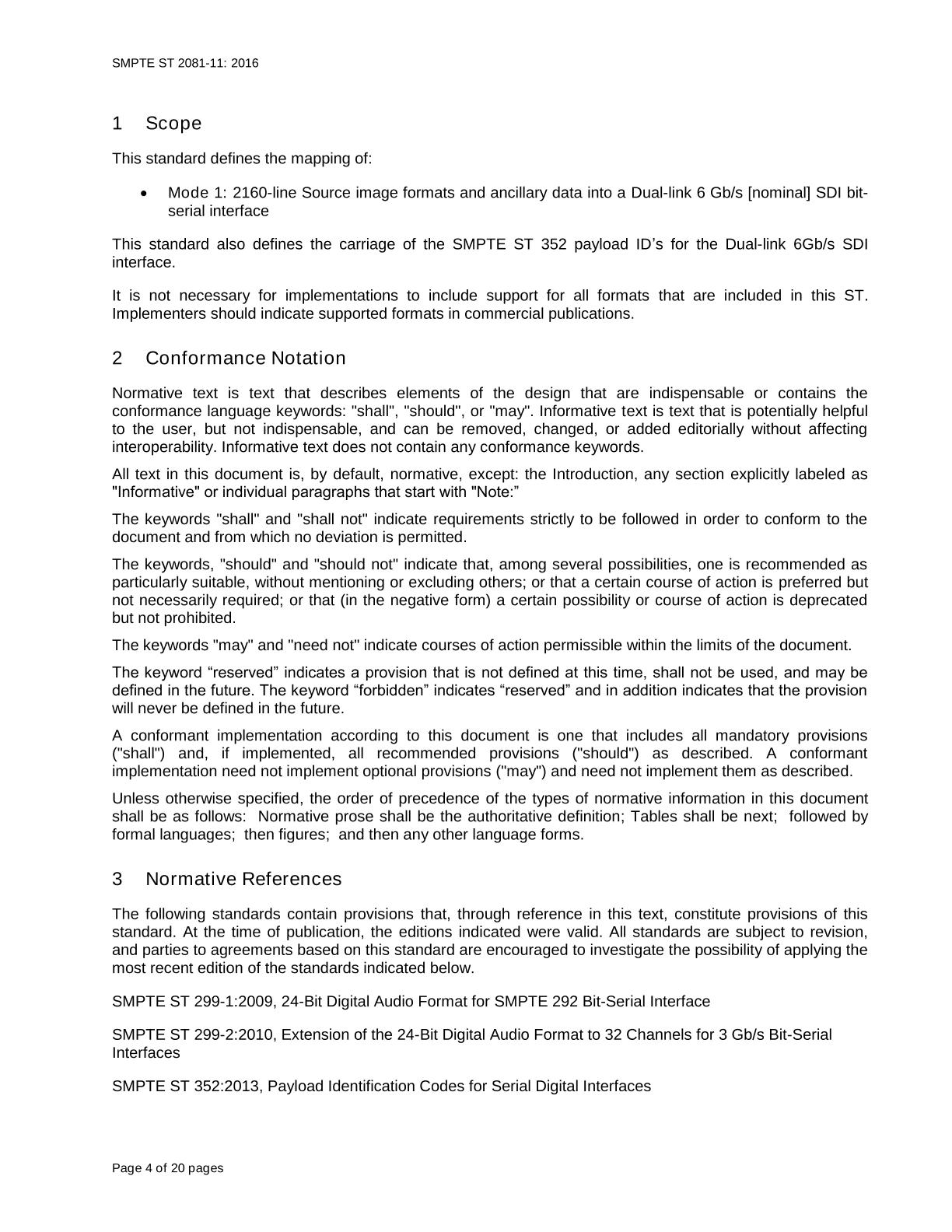

This standard defines the mapping of:

Mode 1: 2160-line Source image formats and ancillary data into a Dual-link 6 Gb/s [nominal] SDI bit-serial interface

This standard also defines the carriage of the SMPTE ST 352 payload ID?s for the Dual-link 6Gb/s SDI interface.

It is not necessary for implementations to include support for all formats that are included in this ST. Implementers should indicate supported formats in commercial publications.
