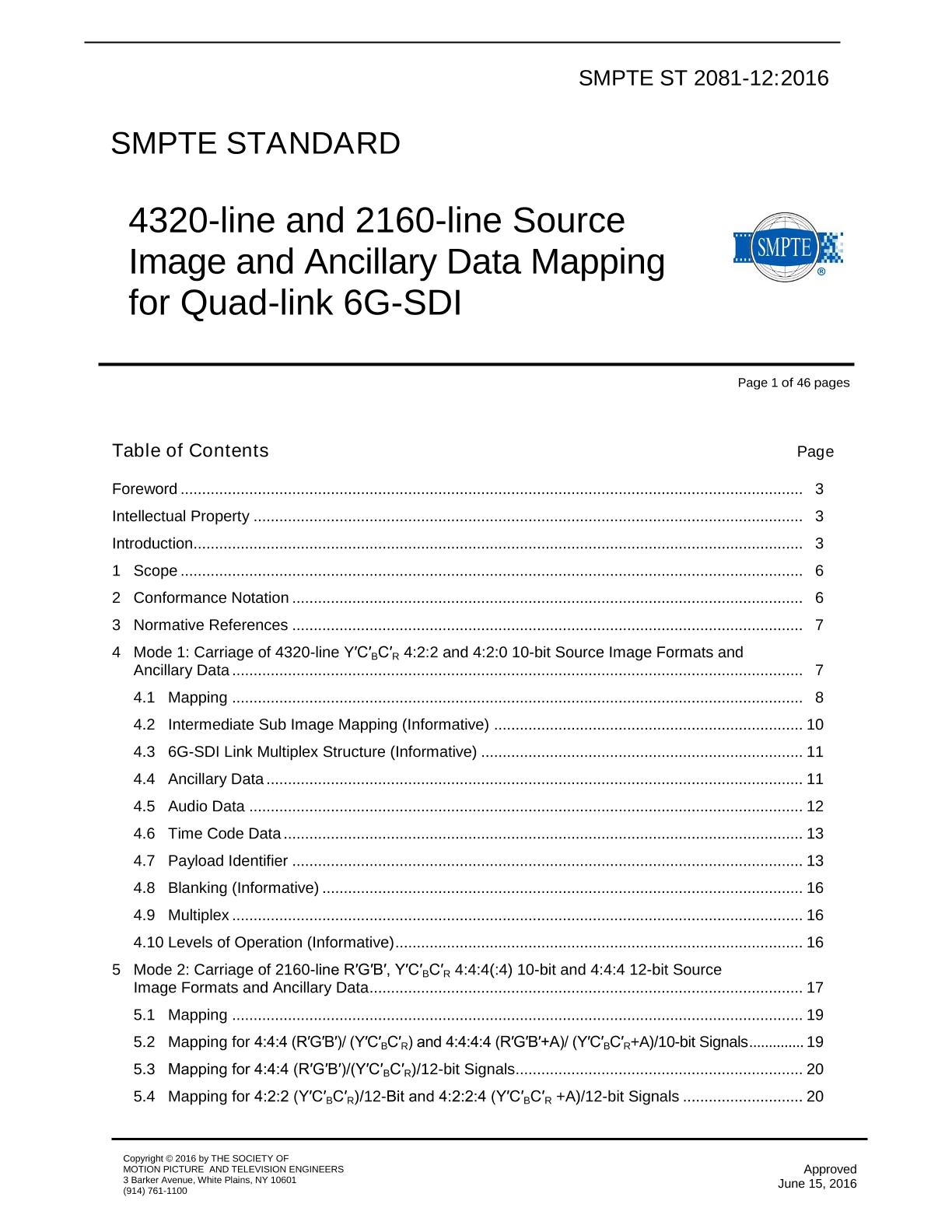

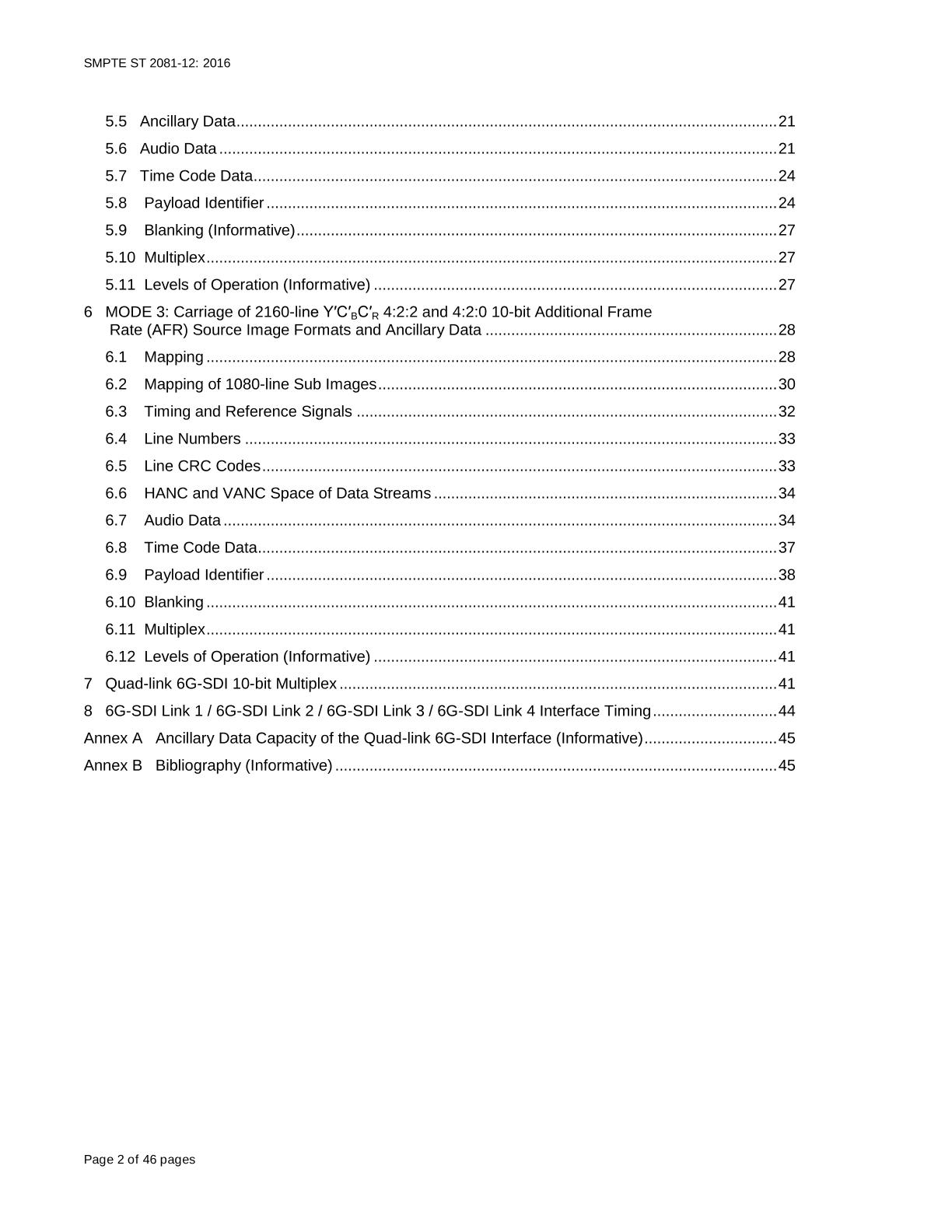

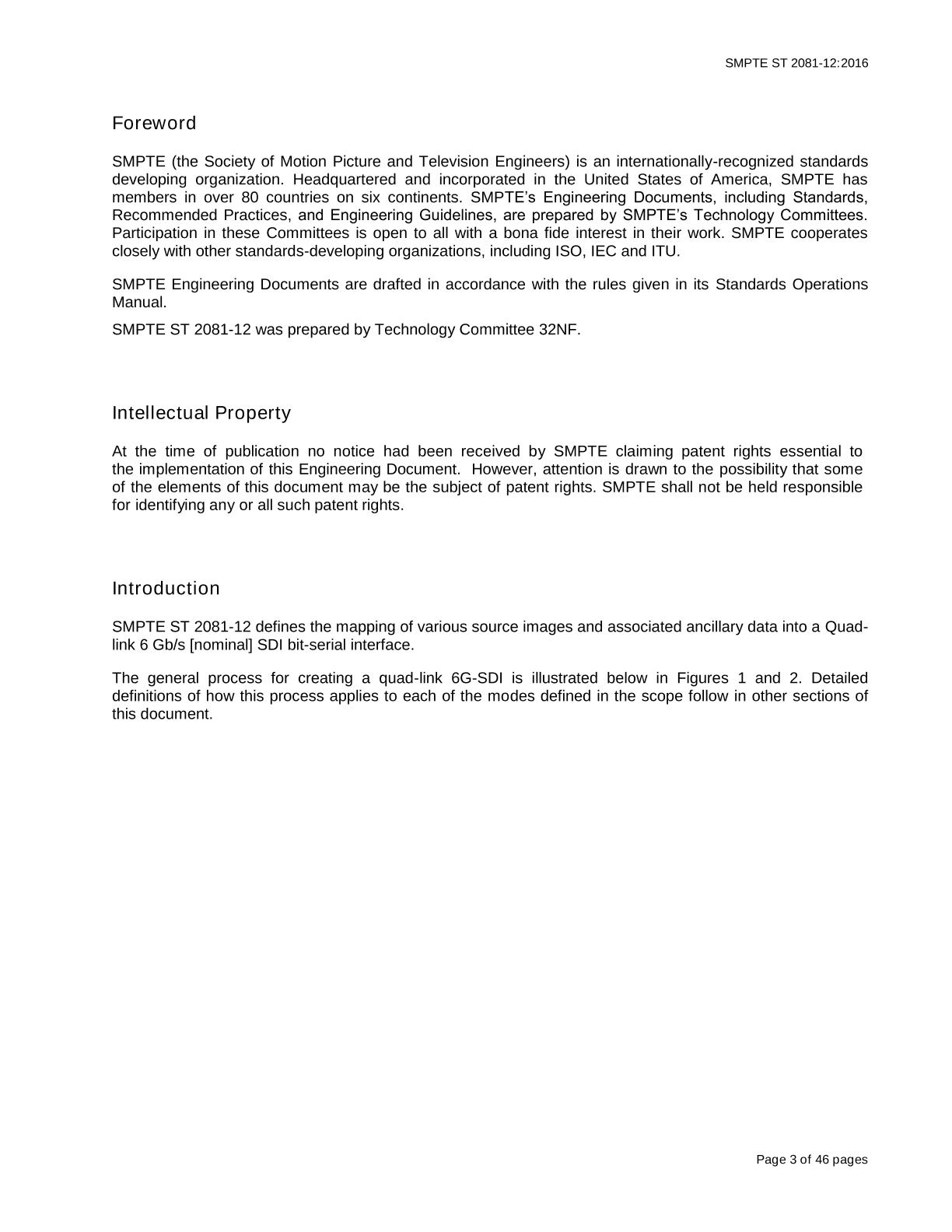

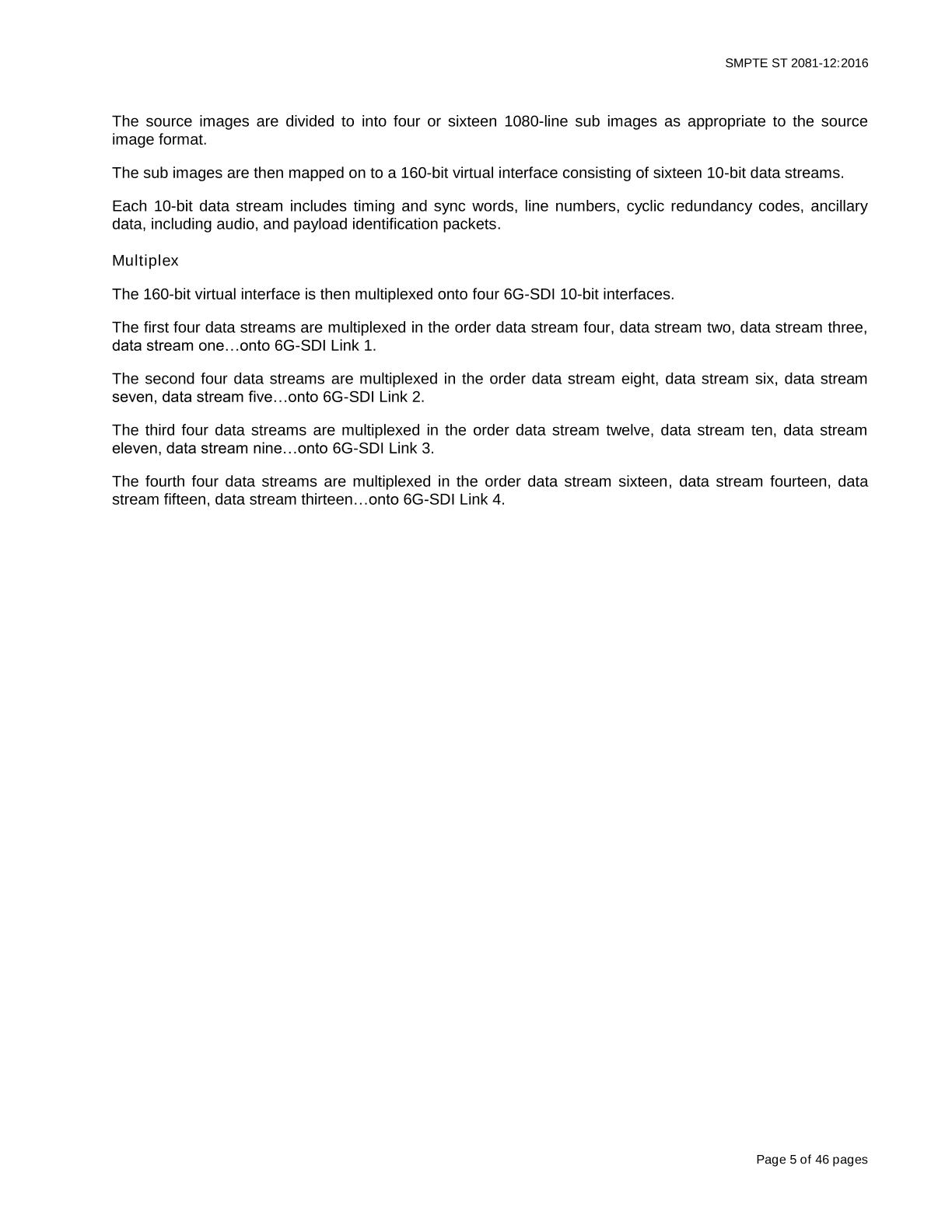

SMPTE ST 2081-12:2016

4320-line and 2160-line Source Image and Ancillary Data Mapping for Quad-link 6G-SDI

Society of Motion Picture and Television Engineers, 06/15/2016

Publisher: SMPTE

File Format: PDF

$87.00$175.00

Description

Published:15/06/2016

Pages:46

File Size:1 file , 850 KB

This standard defines the mapping of:

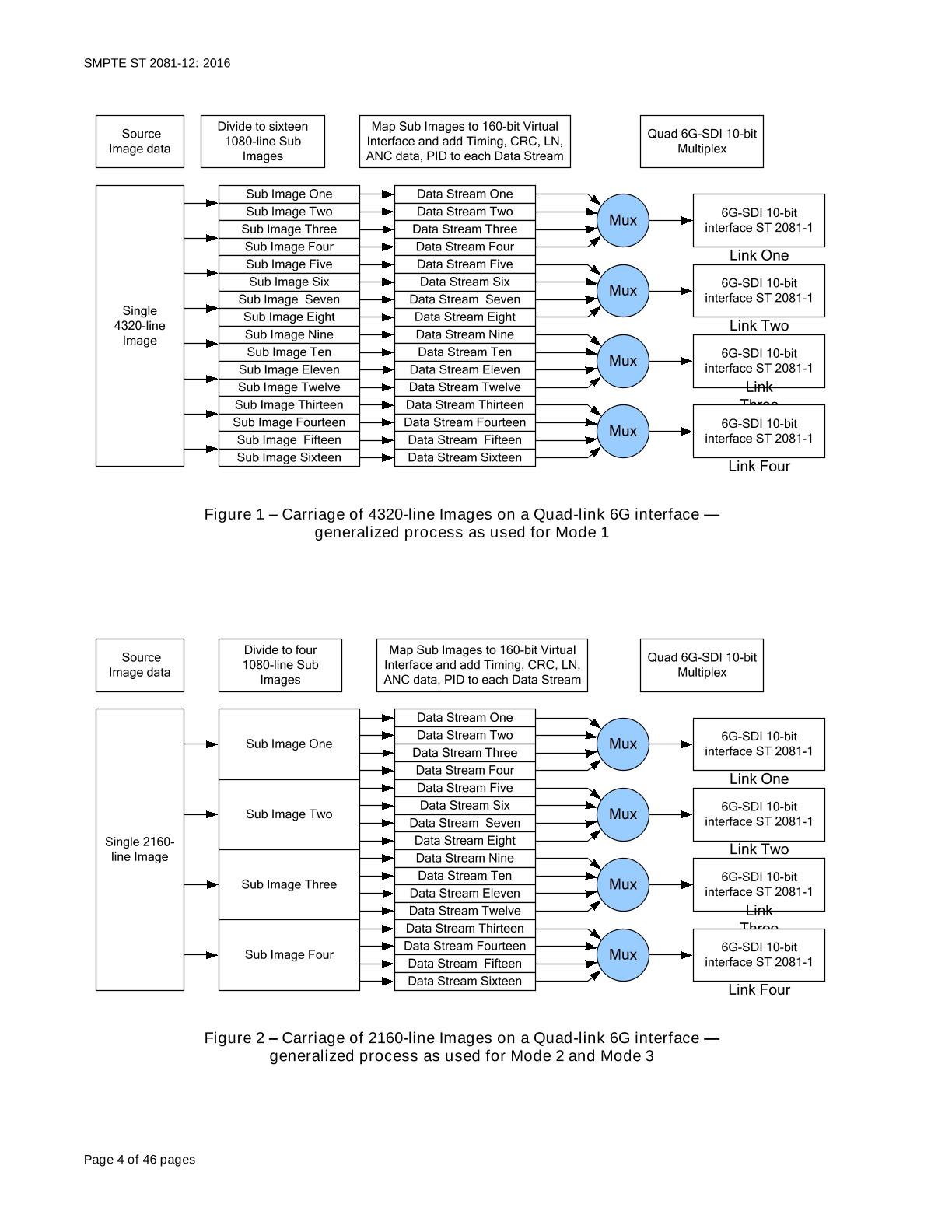

MODE 1: 4320-line Y′C′BC′R4:2:2 and 4:2:0 10-bit image formats and ancillary data on a Quad-link 6 Gb/s [nominal] SDI bit-serial interface.
MODE 2: 2160-lineR′G′B′, Y′C′BC′R4:4:4(:4) 10-bit and 4:4:4 12-bit image formats and ancillary data on a Quad-link 6 Gb/s [nominal] SDI bit-serial interface.
MODE 3: 2160-line Y′C′BC′R4:2:2 and 4:2:0 10-bit Additional Frame Rate Source image formats and ancillary data on a Quad-link 6 Gb/s [nominal] SDI bit-serial interface.

This standard also defines the carriage of the SMPTE ST 352 payload IDs for the Quad-link 6Gb/s SDI interface.

It is not necessary for implementations to include support for all formats that are included in this Standard. Implementers should indicate supported formats in commercial publications.
