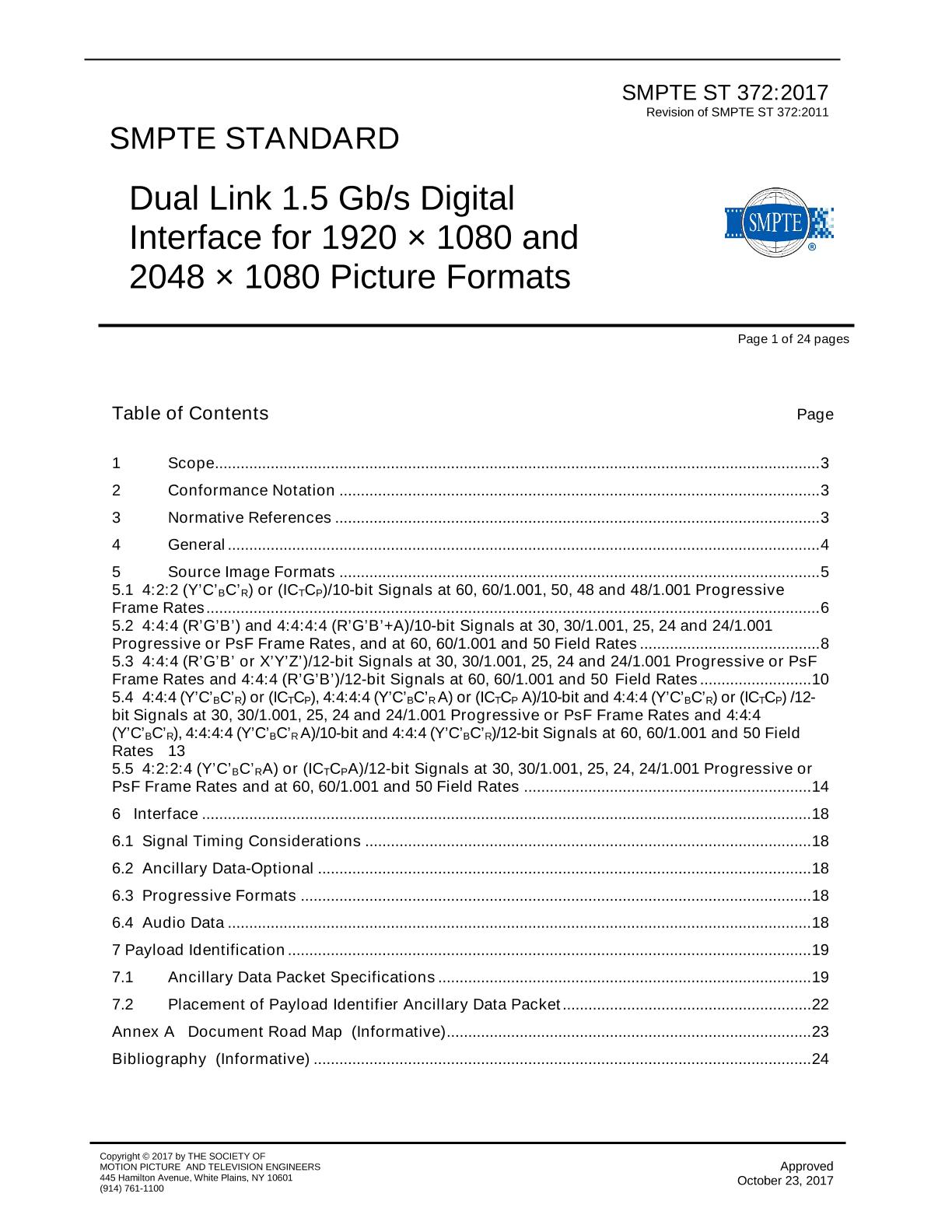

SMPTE ST 372:2017

Dual Link 1.5 Gb/s Digital Interface for 1920 x 1080 and 2048 x 1080 Picture Formats

Society of Motion Picture and Television Engineers, 10/23/2017

Publisher: SMPTE

File Format: PDF

$60.00$120.00


Published:23/10/2017

Pages:24

File Size:1 file , 310 KB

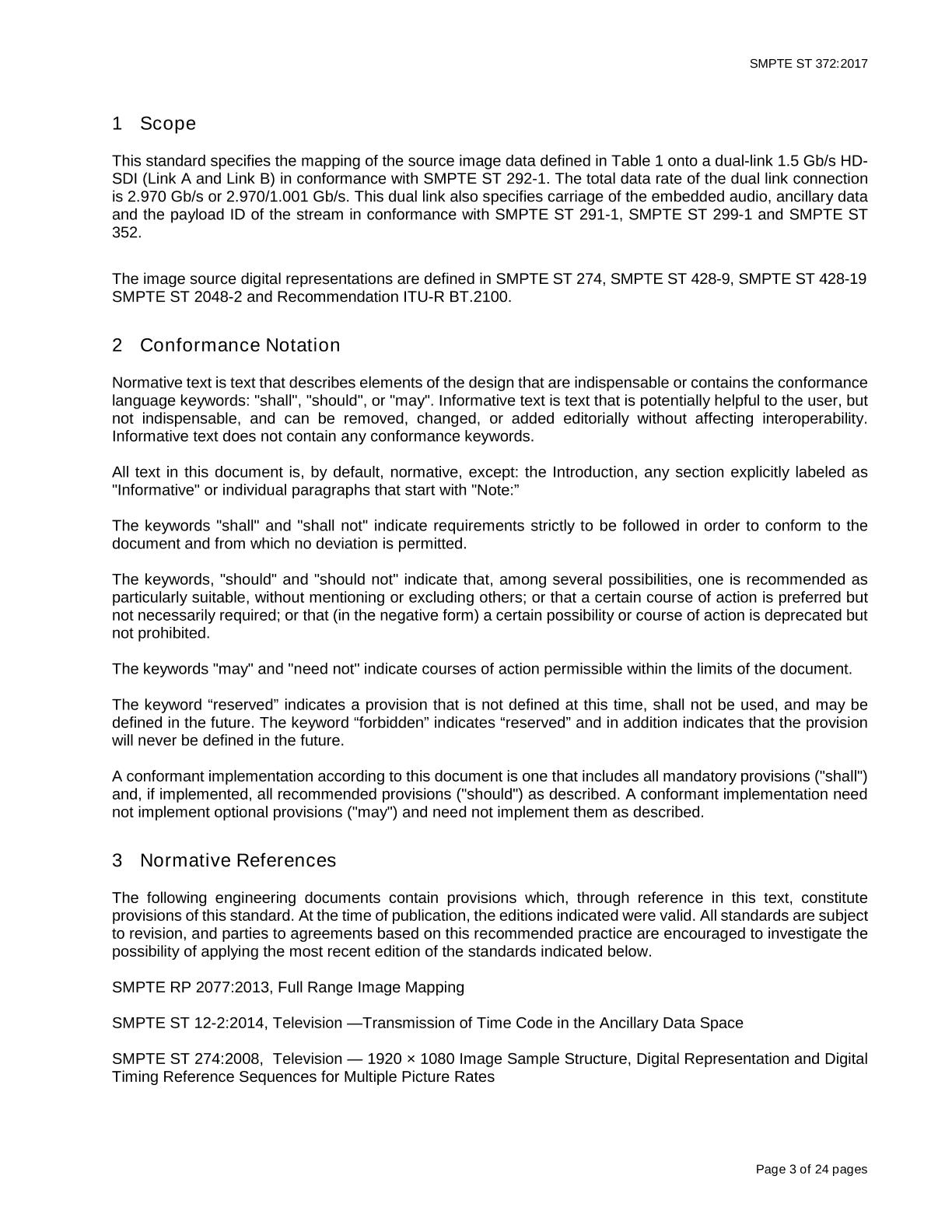

This standard specifies the mapping of the source image data defined in Table 1 onto a dual-link 1.5 Gb/s HD-SDI (Link A and Link B) in conformance with SMPTE ST 292-1. The total data rate of the dual link connection is 2.970 Gb/s or 2.970/1.001 Gb/s. This dual link also specifies carriage of the embedded audio, ancillary data and the payload ID of the stream in conformance with SMPTE ST 291, SMPTE ST 299-1 and SMPTE ST 352.

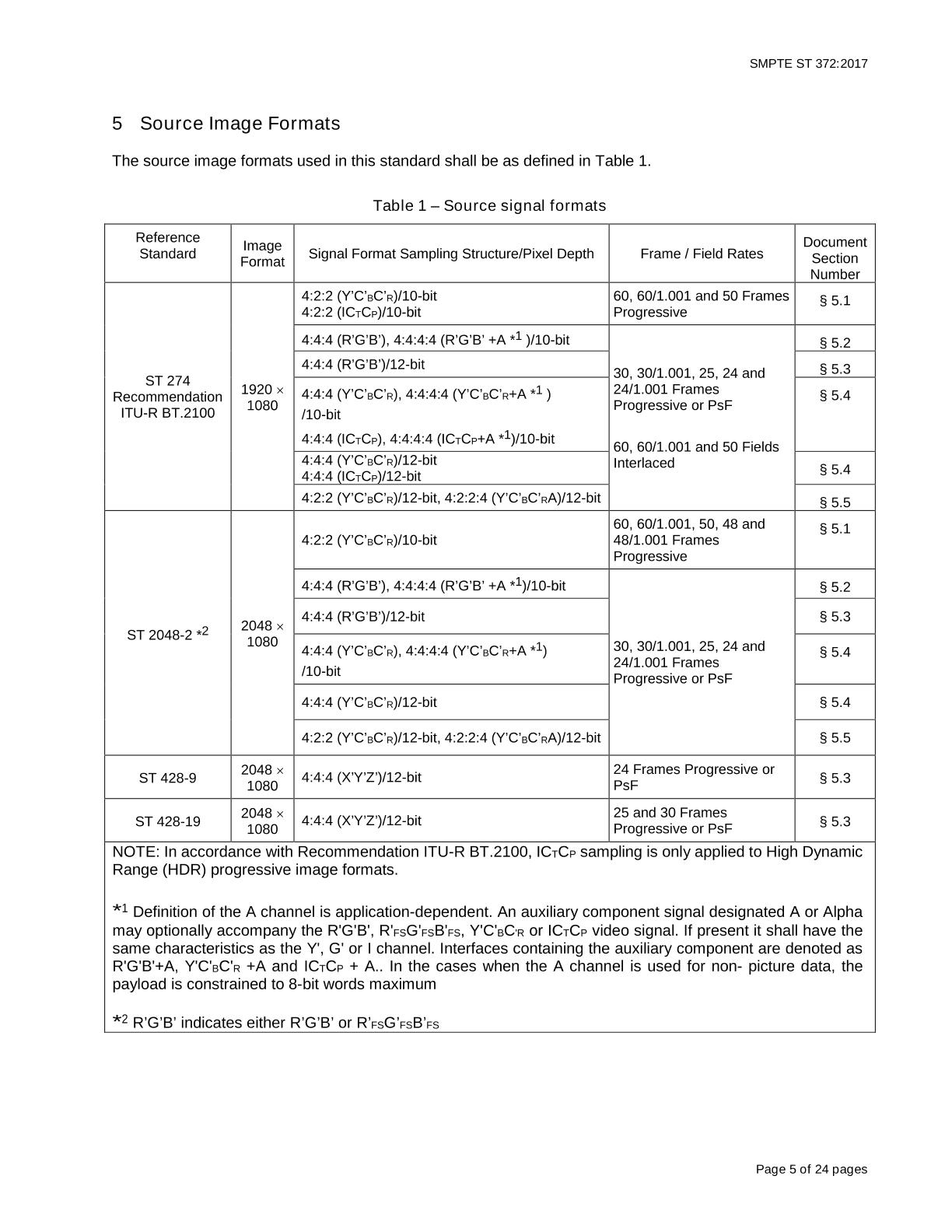

The image source digital representations are defined in SMPTE ST 274, SMPTE ST 428-9, SMPTE ST 428-19 and SMPTE ST 2048-2.
